High pulse High capacity High volatge 3V Primary Li-MnO2 Battery Hermetic Sealing AA Model 1800mAh CR14505SE Bobbin Type

HCB Battery Co., Ltd
Contact Now

High pulse High capacity High volatge 3V Primary Li-MnO2 Battery Hermetic Sealing AA Model 1800mAh CR14505SE Bobbin Type

Brand Name : HCB

Model Number : CR14505SE/AA

Certification : UL/RoHS/UN/CE

Place of Origin : China

MOQ : 1K pcs

Price : Negotiable

Payment Terms : T/T, L/C, D/P, Western Union, MoneyGram, D/A

Supply Ability : Two millions unit per month

Delivery Time : 5 work days

Packaging Details : Special design for Air/Sea/Courier transportation

Type : Non-Rechargeable

Classification : Bobbin/Glass-to-metal Seal

Max Pulse Current(mA) : 100mA

Max Size(mm) : Φ14.5×50.5

Nominal Capacity : 1800mAh

Maximum Continuous Current : 10mA

Contact Now

AA Model 1800mAh CR14505SE Bobbin Type 3V Primary Li-MnO2 Batteres Hermetic Sealing

Nominal Capacity 1800mAh
Battery discharged at continuous current 1mA until voltage reaches cut-off voltage 2.0V at ambient temperature 23±2℃
Nominal Voltage 3.0 V
Maximum Continuous Current 10mA
Battery with minimum 50% rated capacity discharged at ambient temperature 23±2℃
Maximum Pulse Discharge Current 100mA
Battery with minimum 50% rated capacity discharged at max pulse for 3 seconds after 27seconds break. Ambient temperature 23±2℃
Storage Condition

Temperature ≤ 30℃

Humidity ≤ 75%RH

Operating Temperature -40℃ to +85℃

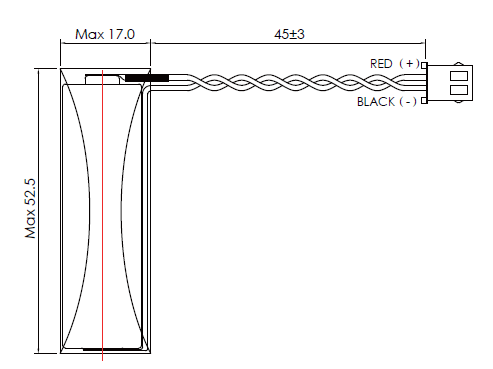

Battery Dimension See drawing on pag
Max Weight 22.0g
Self-discharge Rate 2%
Max self-discharged rate at ambient temperature 23±2℃
Shelf Life 10 years
Ambient temperature 23±2℃

1. Battery Characteristic

  • High Voltage

Single cell rated voltage 3.0V

  • High Energy Density

The specific energy density of each battery is 245Wh/kg

  • Wide Operating Temperature Range

We provide a wide operating temperature range, from -40℃ to +85℃

  • Long Shelf Life

The battery self-discharge less than 2% per year at room temperature

2. Main Applications

  • Security

Smoke detectors, security alarms, seismometers, digital door lock system, etc.

  • Internet of Things

Asset tracking toll-gate transponders smart home bike-sharing IC cards GPS, TPMS, RFID, etc.

3. Company Advantages

  • HCB battery co., LTD., is located in Wuhan Wujiashan Hong Kong international airport economic development zone, the total area of 32000 square meters, is the national high and new technology enterprise.Company specialized in r&d, manufacturing, sales, lithium-ion battery, including: green high-performance lithium manganese dioxide battery series, green series of high-performance lithium thionyl chloride batteries, aluminum-plastic film soft packing card square of 9 v batteries, lithium batteries, etc.
  • Pay attention to the development of science and technology, adhere to the "continuous improvement, and strive to perfect" business philosophy, the company establish the university-enterprise cooperation with colleges and universities in Hubei province established graduate workstation, and has a number of patents and proprietary technology.Company has won the "high-tech enterprises in Hubei province", "private science and technology development contribution award", "outstanding private technology enterprises", 2009 annual "rapid growth enterprise", 2009 "science and technology innovation advanced unit", 2013 "intelligent water meter battery excellent supporting enterprise" and other awards.
  • Company established a complete quality management system, passed the ISO9001 international quality system certification, ISO14001 international environmental management system certification, OHSU18000 occupational health management system certification.
  • Company products through the certification: CE product safety certification in the European Union, the UN America transportation safety certification, UL product certification, access to the Chinese people's liberation army military access authentication, etc.
  • Enterprise mission: let the world see by us Chinese!

High pulse High capacity High volatge 3V Primary Li-MnO2 Battery Hermetic Sealing AA Model 1800mAh CR14505SE Bobbin Type

High pulse High capacity High volatge 3V Primary Li-MnO2 Battery Hermetic Sealing AA Model 1800mAh CR14505SE Bobbin Type
