| Nominal Capacity | 2200mAh |

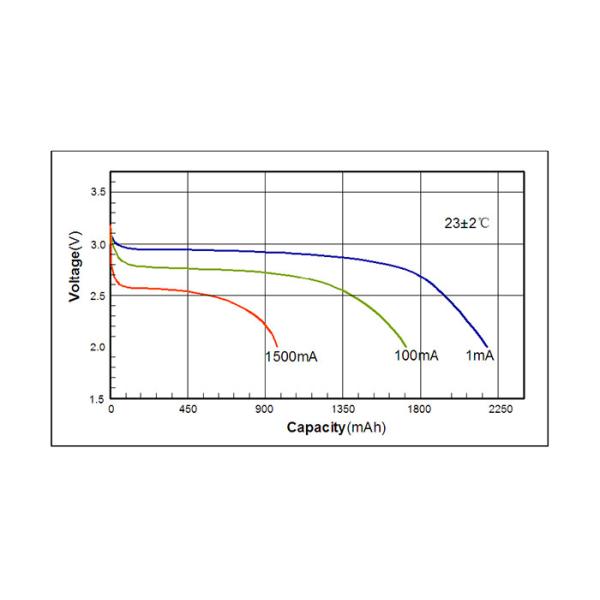

| Battery discharged at continuous current 1mA until voltage reaches cut-off voltage 2.0V at ambient temperature 23±2℃ |
| Nominal Voltage | 3.0 V |
| Maximum Continuous Current | 1500mA |
| Battery with minimum 50% rated capacity discharged at ambient temperature 23±2℃ |
| Maximum Pulse Discharge Current | 3000mA |
| Battery with minimum 50% rated capacity discharged at max pulse for 3 seconds after 27seconds break. Ambient temperature 23±2℃ |
| Storage Condition | Temperature ≤ 30℃ Humidity ≤ 75%RH |
| Operating Temperature | -40℃ to +85℃ |
| Battery Dimension | See drawing on pag |
| Max Weight | 26.0g |
| Self-discharge Rate | 2% |
| Max self-discharged rate at ambient temperature 23±2℃ |
| Shelf Life | 10 years |
| Ambient temperature 23±2℃ |
1. Battery Characteristic
Single cell rated voltage 3.0V
Specific energy density up to 253Wh/kg
- Wide Operating Temperature Range
Battery working temperature range from -40℃ to +85℃
Under the condition of normal temperature, the battery self -discharge rate of no more than 2% per year
High capacity, stable performance, without passivation
Hermetic welding sealing to reduce the leakage for extending the shelf life to more than 10 years
The battery safety performance is good, high reliability, and pollution-free, environmental friendly.
2. Main Applications
Automatic meters (water meter, electric meter, gas meter), conventional meters, etc.
Wireless telecommunication devices
Well pressure meters in high temperature, float meter, logging while drilling (LWD), measure while drilling (MWD), etc.
3. Manufacturing Advantages
- It is ok to use advance automatic technology in HCB;
- Cathode is produced by the unique advanced manufacturing process;
- There are variety of solutions such as high power, high capacity or low temperature etc;
- The multiple cascade and parallel connecting ways and combining suggestions can be provided with you;
- The products can be stored for 10 years which is very reliable.
4. Company Advantages
- The quality management system in HCB is accord with GB/T19001-2008/ISO9001:2008 standard;
- Environment Management System of HCB is conformity with GB/T24001-2004/ISO14001:2004;
- 1.2 meter drop test can be available to our battery;
- HCB can provide the report for safe transport of goods to the customers;
- The CE certificate can be given to you if required;
- The Rosh certificate can be given to you if required;
- UL test is available for HCB Battery;
5. FAQS of General Safety Instructions
- In order to keep the battery safely, what should we do?
The Battery should be stored in dry environment.
- What kind of case do we need to stop using the battery?
We need to stop using the battery when the abnormal heat release or leakage occurs.
- Why is there a manual in the master cartons?
The manual is necessary to read before you would like to use the battery.
- What are you careful with if there are children beside when you use the battery?
You need to keep battery out of the children. Please call to a physician immediately if it is swallowed by children.
- Why should you keep the batteries away from the fire?
They are going to be hot in very short time and it will lead the leakage of gas and toxic materials which may cause a big rupture.
- If the positive and negative polarity of a battery is directly connected, what will happen?
If + and - polarity of battery is connected directly, it causes a short circuit and this may lead toxic gas and materials leakage or a big rupture.
- What will happen if the batteries are thrown into the water?
The batteries are not able to be thrown into the water. This can cause the water explosion.
